Magic Music Visuals

Cheers. saves me puzzling over html/js code of their pages .

Hi Eric,

I just wanted to mention, that you have another soul praying for a multipass support ....

Lots of epic shaders out there

Regards,
S.

Hey, just got Magic and I'm loving it so far. I gave this a try and none of the shaders I tried worked. Is this still working or did I screw up some how? Usually I'm smart

So here's a couple of the ones I tried, if anyone could give a shot converting them and let me know how it goes or have any ideas what I may be doing wrong.

https://www.shadertoy.com/view/XlsczN
https://www.shadertoy.com/view/MtfSz2
https://www.shadertoy.com/view/Md3SRM

Thanks

Thanks for letting me know. It looks like Shadertoy changed its spec recently, so I just updated my script and it should work with the second two. The first one is multipass so it won't work (yet).

Thanks for the quick reply and the quick fix, works now. Guess I'll start saving a list of all the multi-pass shaders in anticipation

Hi,

Is it possible to use Magic with this shader:
https://www.shadertoy.com/view/4sB3WV

I don't want to use textures, but Magic generated content. I tried to do it the "tutorial way" but it gives me a "one way" module:, that doesn't have an input.
Thank you!

Regards,
S.

If you want to use Magic images as inputs instead of the Shadertoy textures, click the checkbox that says "Don't use IMPORTED images (advanced)".

I'm not 100% per cent sure if I've done this correctly because a lot of this is new to me.

I didnt know how to get the shadertoy content so it would work in Magic, so I googled it a bit and found this converter. I converted it, then copied and pasted it into a text file, and deleted .txt at the end and replaced it with .fs . Is that correct ?

If I've done that right, do I just link to a folder anywhere with those .fs files in it, or will it work more fluidly if that folder is placed in a specific place within the magic installation folder ??

Apologies for noob questions. I excel at audio DAWs, but this is all new to me and i'd never even heard of a shader until yesterday and thought it was simply a tool to make gradients of a colour so that red could become lighter red or blue becomes lighter blue etc....so imagine my surprise when I tried the shaders and found not shaders, but FX !!

Very cool. I see the potential for awesomeness, but feeling very green

Try this tutorial: viewtopic.php?f=3&t=412

thanks eric. I had a look at that and it seems easy enough.

Having problems with shadertoy though. I can see 1 page and the video is moving but i click to the next page, they take an age to load, and then get a message about webGL being disabled, so i went into firefoxes config page ( the here be dragoons page ) and went down to webGL.disable.angle or something like that and changed it from true to false, or vice versa ( cant remember ), and it worked for a few minutes and screwed up again. I tried this several times, changing back and forth from true to false, but firefox wont play the videos now.
Without the videos, the code doesn't appear either, so I can't copy / paste and do the .fs thing without it.

Any ideas ??

Hmm... well I can't say I'm an expert on Firefox or WebGL or Shadertoy itself... but I might suggest trying a different browser, such as Chrome...

yeah I tried Chrome, and its just a little bit better, but does the same thing. Im new to graphics so a lot of it is double dutch to me, and was hoping you might know. Thanks anyway

Hey everyone!

I am trying to get a pixel sorting type shader for live performances. I have been trying one with no success in Magic and then read that you can't use ones with multiple buffers. I found this one (https://www.shadertoy.com/view/MstyDl) but the program still closes every time I try to use it. I am very new to uploading these myself so any help on how to get them into Magic would be much appreciated.

When you say that the program closes, do you mean that Magic crashes? If so, you may want to try updating your graphics drivers...

Thanks Eric,

Very useful indeed.

If you are considering any updates to the conversion script, I've needed to manually add the following line:

float iFrame = FRAMEINDEX;

to the converted code for shaders that use the iFrame variable (similar to the way the code handles iTime). Not sure how common this is, but might be worth adding at some point if you are making any other changes.

I wanted to use the awesome Shadertoy XY Audio Oscilloscope in Magic. https://www.shadertoy.com/view/3t23Rt
The current shadertoy_to_isf script only produced minimal output, so I used the VIDVOX ISF editor to import from Shadertoy which managed much better. I highly recommend this editor for Windows users.

With David Lublin's help I managed to get it working very nicely in their ISF editor's preview window, getting results just like those in the Shadertoy environment.

When I try the same shader in Magic it only works partially, with just vertical deflection (and that mainly in the +X direction).
Help!

Yes, that's a multipass shader and my conversion script won't handle it. If the Vidvox editor works for multipass then I'd definitely recommend it over my old script.

I ran your .fs file on my everyday laptop and it makes Magic run at 2 fps with nothing else in the scene though...?

Odd. I've attached a project that I tried on two of my systems (both GTX1070) and it runs at good speed, running 720p at nearly 200fps at the same time as the ISF editor. With no music input there's normally a small dot in the centre of the screen.

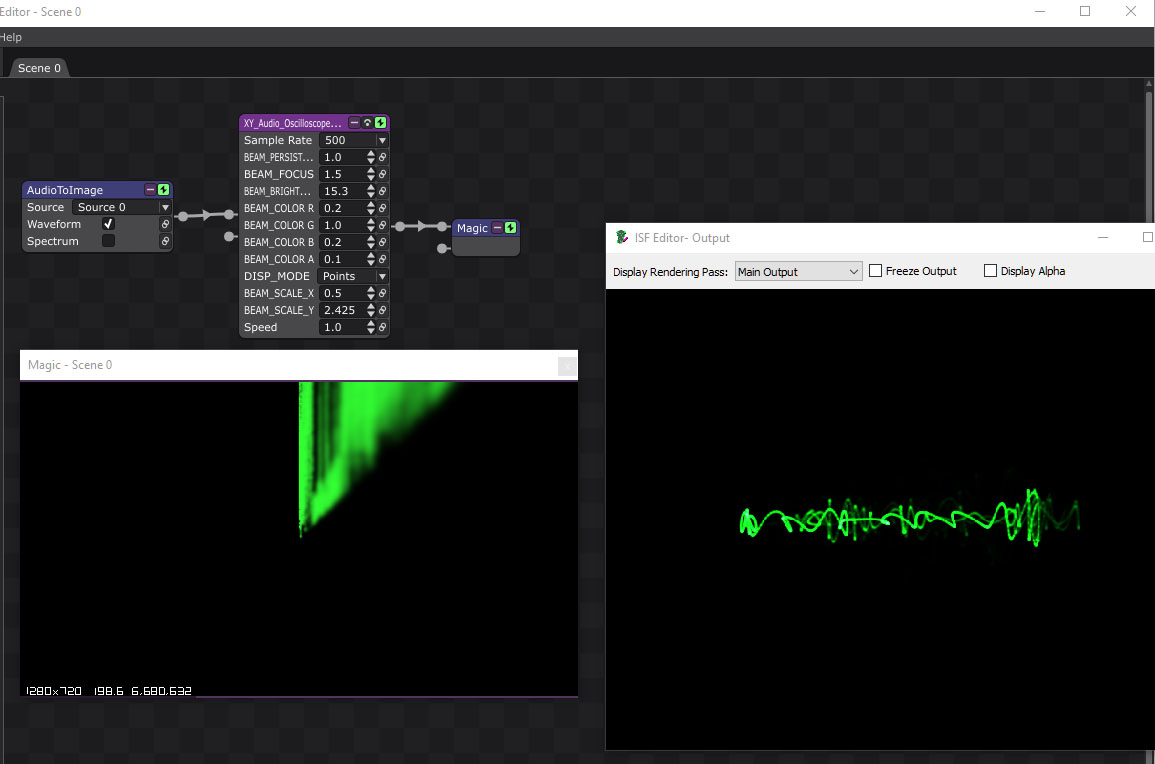

Here's a screenshot of the attached project running, with the ISF window alongside for comparison.

In order to see something more than just a dot or vertical line in the attached Magic project I turned the persistence way up - and then there's a trail drifting towards the top right corner. I used a low persistence setting for the ISF instance of the shader for clarity.

David Lublin did mention that I might need to change his ISF editor into OpenGL 4 mode, but I found enabling OpenGL 4 made no difference (although I couldn't confirm that the editor was indeed changing modes accordingly).

Perhaps you can spot something in the ISF editor's output code that Magic doesn't handle.

Oops, I just noticed that my Magic project has the XY scope module in Points rather than Lines mode. It makes the trail a little more responsive when the persistence is maxed out. In the ISF editor I much prefer the Lines mode.

Ok. I guess I can't guarantee that the ISF editor will behave exactly the same as Magic, and I can't guarantee that the code between them is 100% compatible. But I will have a look when I get a chance.

Shouldn't your AudioToImage module have Spectrum selected, not Waveform? Maybe not, I dunno.
